RP HP UHP Dia 75-800 Graphite Electrode With Nipples in Steel-making Industry

Product Details

Place of Origin: Zhengzhou,China

Brand Name: Rongsheng Xinwei

Certification: ISO9001

Model Number: UP HP UHP

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Ton

Price: 200-800USD

Packaging Details: Packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages

Delivery Time: 10-20 Days

Payment Terms: TT; L/C

Supply Ability: 2000tons /month

Get Best Price
Highlight:

UHP Graphite Electrode

,

RP Graphite Electrode

,

Steel-making Industry Graphite Electrode

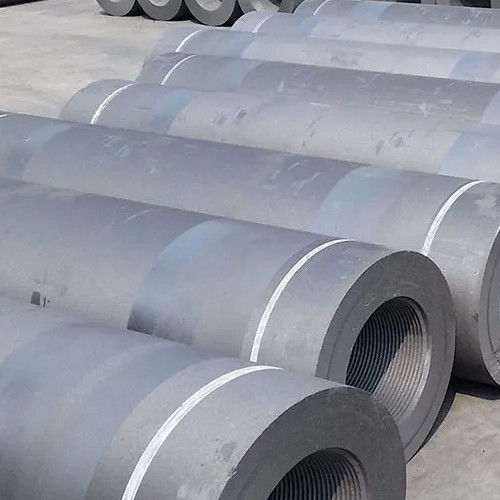

RP HP UHP Dia 75-800 Graphite Electrode With Nipples in Steel-making Industry

Product Overview of Rongsheng Factory Sale RP HP UHP Dia 75-800 Graphite Electrode With Nipples Widely Used in Steel-making Industry

Introducing our premium Graphite Electrodes, designed for optimal performance in electric arc furnaces and other high-temperature applications. Our electrodes are available in RP, HP, and UHP grades, ensuring versatility and reliability for various industrial processes.

RP HP UHP Dia 75-800 Graphite Electrode With Nipples in Steel-making Industry 0

Key Features of High-Quality Graphite Electrodes and Nipples

  • Superior Conductivity: Our electrodes provide excellent electrical conductivity, essential for efficient energy transfer during the melting process.
  • High Thermal Stability: Engineered to withstand extreme temperatures, our graphite electrodes maintain their integrity, enhancing overall performance.
  • Durability: Manufactured from high-quality raw materials, they are resistant to oxidation and wear, ensuring long-lasting use.
  • Customizable Sizes: Available in various diameters and lengths to meet your specific requirements.

Applications of High-Quality Graphite Electrodes and Nipples

Graphite electrodes are widely used in:

  • Electric Arc Furnaces: Ideal for steel production and recycling.
  • Foundries: Perfect for the production of non-ferrous metals.
  • Silicon Production: Essential for the manufacturing of silicon and other chemical processes.

Technical Parameter of Graphite Electrodes and Nipple:



Regular Graphite Electrode

Item Nominal diameter mm
75~130 150~225 250~300 350~450 500~800
Grade Excellent Ex Ex Ex Ex
Resistivity
μΩ·m ≤
Electrode 8.5 10.0 9.0 10.5 9.0 10.5 9.0 10.5 9.0 10.5
Connector 8.0 8.0 8.0 8.0 8.0
Flexural strength MPa ≥ Electrode 10.0 10.0 8.0 7.0 6.5
Connector 15.0 15.0 15.0 15.0 15.0
Elastic Modulus GPa ≤ Electrode 9.3 9.3 9.3 9.3 9.3
Connector 14.0 14.0 14.0 14.0 14.0
Bulk density g/cm3 ≥ Electrode 1.58 1.53 1.53 1.53 1.52
Connector 1.70 1.70 1.70 1.70 1.70
Thermal expansion coefficient 10-6/℃
room temperature ~600℃ ≥
Electrode 2.9 2.9 2.9 2.9 2.9
Connector 2.7 2.7 2.8 2.8 2.8
Ash % ≤ 0.5 0.5 0.5 0.5 0.5



High Power Graphite Electrodes

Item Nominal diameter mm
200~400 450~500 550~700
Resistivity
μΩ·m ≤
Electrode 7.0 7.5 7.5
Connector 6.3 6.3 6.3
Flexural strength MPa ≥ Electrode 10.5 10.0 8.5
Connector 17.0 17.0 17.0
Elastic Modulus GPa ≤ Electrode 14.0 14.0 14.0
Connector 16.0 16.0 16.0
Bulk density g/cm3 ≥ Electrode 1.60 1.60 1.60
Connector 1.72 1.72 1.72
Thermal expansion coefficient 10-6/℃
Room temperature~600℃ ≥
Electrode 2.4 2.4 2.4
Connector 2.2 2.2 2.2
Ash % ≤ 0.5 0.5 0.5



Ultra High Power Graphite Electrode

Item Nominal diameter mm
300~400 450~500 550~650 700~800
Resistivity
μΩ·m ≤
Electrode 6.2 6.3 6.0 5.8
Connector 5.3 5.3 4.5 4.3
Flexural strength MPa ≥ Electrode 10.5 10.5 10.0 10.0
Connector 20.0 20.0 22.0 23.0
Elastic Modulus GPa ≤ Electrode 14.0 14.0 1.66 14.0
Connector 20.0 20.0 1.78 22.0
Bulk density g/cm3 ≥ Electrode 1.67 1.66 1.66 1.68
Connector 1.74 1.75 1.78 1.78
Thermal expansion coefficient 10-6/℃
Room temperature~600℃ ≥
Electrode 1.5 1.5 1.5 1.5
Connector 1.4 1.4 1.3 1.3
Ash % ≤ 0.5 0.5 0.5 0.5

Quality Assurance

Our products undergo rigorous quality control measures, ensuring that every batch meets international standards. With over 20 years of experience in the refractory materials industry, we are committed to providing top-quality solutions that meet our clients' needs.

Why Choose Us?

  • Expert Manufacturer: Renowned for excellence in refractory materials, our expertise spans over two decades.
  • Global Reach: Our products are exported to more than 100 countries, establishing us as a trusted supplier worldwide.
  • Customer-Centric Service: We prioritize customer satisfaction, offering tailored solutions and responsive support.

Contact Us

For more information or to place an order, please reach out:

  • Tel/Whatsapp: +86-18538509097
  • Email: Jackyhan2023@outlook.com

Explore the advantages of our high-quality Graphite Electrodes and Nipples today and experience the difference in your production processes!
