$Customizable Beta Alumina Refractory Bricks For Glass Furnaces$

Customizable Beta Alumina Refractory Bricks For Glass Furnaces

Name: Customizable Beta Alumina Refractory Bricks For Glass Furnaces
Brand: Rongsheng Xinwei
SKU: Rongsheng
Price: 200 USD
Availability: InStock
Rating: 4.5 (191 reviews)

Product Details

Place of Origin: Zhengzhou,China

Brand Name: Rongsheng Xinwei

Certification: ISO9001

Model Number: Rongsheng

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Ton

Price: 200-800USD

Packaging Details: Packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages

Delivery Time: 10-20 Days

Payment Terms: TT; L/C

Supply Ability: 2000tons /month

Get Best Price

Product Details

Product Description

Highlight:
                                                Beta Alumina Refractory Bricks, Glass Furnaces Beta Alumina Refractory Bricks, Glass Furnaces Refractory Bricks

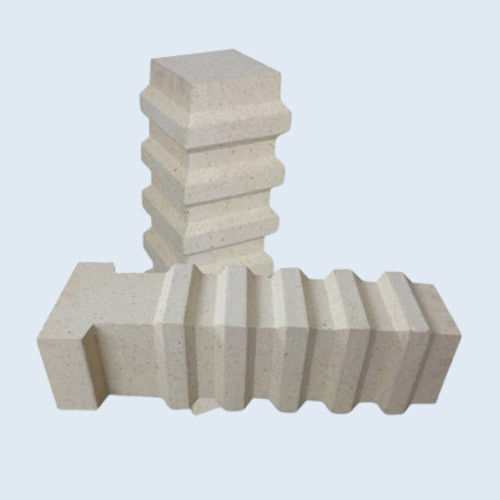

Customizable Beta Alumina Refractory Bricks For Glass Furnaces

Product Description of Beta Alumina Refractory Bricks For Glass Furnaces

Fused Alumina Bricks (Beta Alumina Bricks) are primarily composed of the β-Al₂O₃ crystalline phase, with a content of approximately 50%. These bricks have a dense crystalline structure and exhibit excellent corrosion resistance to molten glass at temperatures below 1350°C. As a result, they are widely used in the working pool and rear sections of glass furnaces. Common applications include flow channels, lip bricks, and gate bricks.

Due to the saturation of Al₂O₃ by sodium above 2000°C, beta alumina bricks demonstrate exceptional stability against alkali vapors at high temperatures. Additionally, their thermal shock resistance is among the best of fused cast bricks. However, when in contact with SiO₂, the Na₂O in beta alumina bricks reacts with SiO₂, causing β-Al₂O₃ to convert to α-Al₂O₃, which results in significant volume shrinkage. This may lead to cracks and damage to the bricks. Therefore, these bricks are only suitable for areas away from SiO₂-containing dust, such as the upper structure of the working pool, breast walls near the burner ports, small furnace openings, and hanging walls.

$Customizable Beta Alumina Refractory Bricks For Glass Furnaces 0$

Physical and Chemical Properties of Beta Alumina Refractory Bricks for Glass Furnaces:

Item		FUSED CAST ALUMINA	FUSED CAST ALUMINA	FUSED CAST ALUMINA
Item		a-b Alumina TY-M	a- Alumina TY-A	b- Alumina TY-H
Chemical Composition %	Al2O3	94	98.5	93
	SiO2	1	0.4	-
	NaO2	4	0.9	6.5
	Other oxides	1	0.2	0.5
Crystallographic Analysis %	a-Al2O3	44	90	-
	b-Al2O3	55	4	99
	Vitreous Phase	1	6	1
