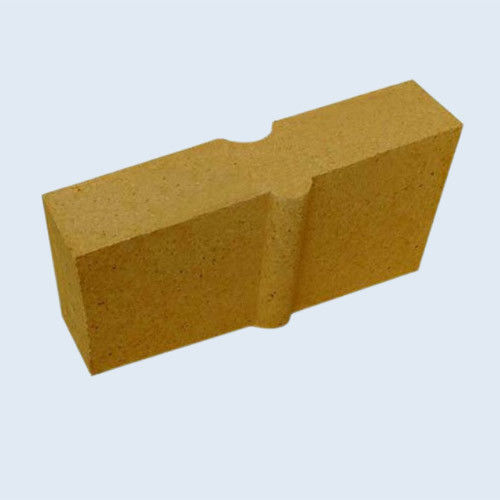

Low Creep High Alumina Bricks For Hot Blast Stove

Name: Low Creep High Alumina Bricks For Hot Blast Stove
Brand: Rongsheng Xinwei
SKU: Rongsheng
Price: 200 USD
Availability: InStock
Rating: 4.8 (128 reviews)

Product Details

Place of Origin: Zhengzhou ,China

Brand Name: Rongsheng Xinwei

Certification: ISO9001

Model Number: Rongsheng

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Ton

Price: 200-800USD

Packaging Details: Packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages

Delivery Time: 10-20 Days

Payment Terms: TT; L/C

Supply Ability: 2000tons /month

Get Best Price

Product Details

Product Description

Highlight:
                                                Low Creep High Alumina Bricks, Hot Blast Stove High Alumina Bricks


Low Creep High Alumina Bricks For Hot Blast Stove

Product Description of Low Creep High Alumina Bricks For Hot Blast Stove

Low creep high alumina bricks are refractory materials made primarily from bauxite, fused corundum, and fused mullite.

Product Features of Low Creep High Alumina Bricks

1.Refractoriness

Low creep high alumina bricks have a refractoriness higher than clay bricks and semi-silica bricks, reaching 1750~1790°C, classifying them as refractory materials.

2.Load Softening Temperature

Due to the high Al2O3 content and low impurities, the formation of fusible glass phases is reduced, giving these bricks a higher load softening temperature than clay bricks. However, the absence of a network structure in mullite crystals results in a load softening temperature lower than that of silica bricks.

3.Slag Resistance

With a high Al2O3 content, these bricks are close to neutral refractory materials and can resist erosion by both acidic and basic slags. However, the presence of SiO2 makes their resistance to basic slag slightly weaker than to acidic slag.

Product Applications of Low Creep High Alumina Bricks For Hot Blast Stove

Primarily used in the construction of blast furnaces, hot blast stoves, electric furnace roofs, blow furnaces, reverberatory furnaces, and rotary kiln linings.

Physical And Chemical Parameters of Low Creep High Alumina Bricks

Item		Low Creep High Alumina Bricks
Item		DRL-155	DRL-150	DRL-145	DRL-140	DRL-135	DRL-130	DRL-127
Al2O3,% ≥		75	75	65	65	65	60	50
Apparent Porosity, % ≤		20	21	22	22	22	22	23
Bulk Density, g/cm³		2.65-2.85	2.65-2.85	2.50-2.70	2.40-2.60	2.35-2.30	2.30-2.50	2.30-2.50
Cold Crushing Strength, MPa ≥		60	60	60	55	55	55	50
Creep Rate (0.2MPa, 50h) ≤		1550℃ 0.8	1500℃ 0.8	1450℃ 0.8	1400℃ 0.8	1350℃ 0.8	1300℃ 0.8	1270℃ 0.8
Permanent Linear Change Rate, %	1550℃,2h	0.1－-0.2	0.1－-0.2	0.1－-0.2
Permanent Linear Change Rate, %	1450℃,2h				0.1－-0.2	0.1－-0.4	0.1－-0.4	0.1－-0.4
