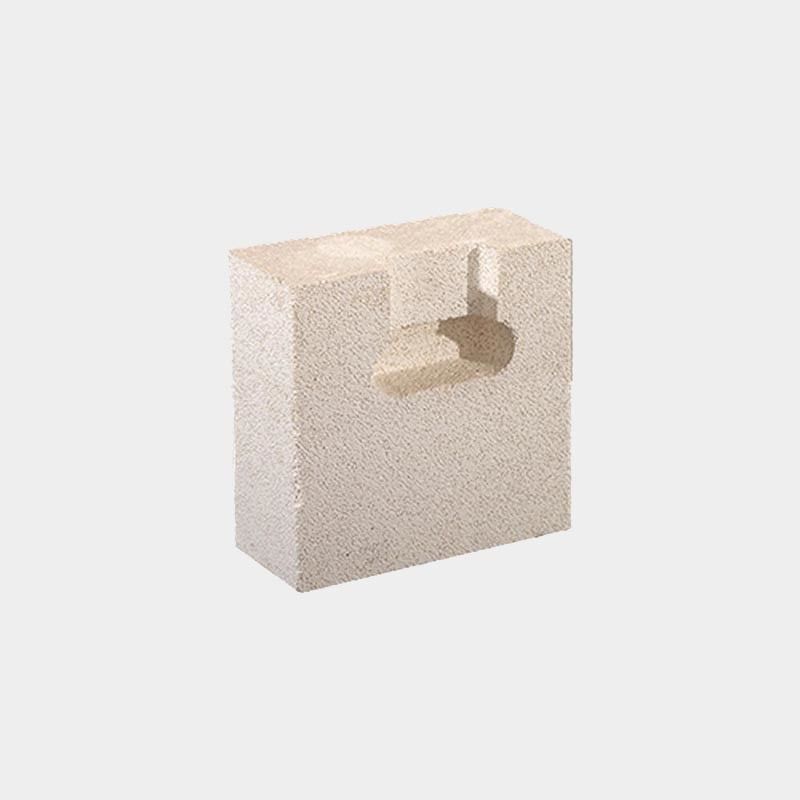

JM23 JM26 Mullite Bricks JM28 JM30 JM32 Light Weight Mullite Insulating Fire Brick
JM23 JM26 Mullite Bricks JM28 JM30 JM32 Light Weight Mullite Insulating Fire Brick
JM23 JM26 Mullite Bricks JM28 JM30 JM32 Light Weight Mullite Insulating Fire Brick

JM23 JM26 Mullite Bricks JM28 JM30 JM32 Light Weight Mullite Insulating Fire Brick

Product Details

Place of Origin: Zhengzhou ,China

Brand Name: Rongsheng Xinwei

Certification: ISO9001

Model Number: JM23 JM26 JM28 JM30 JM32

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 25 TONS

Price: 200-800USD

Packaging Details: packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages

Delivery Time: 20-30DAYS

Payment Terms: TT; L/C

Supply Ability: 2000tons /month

Get Best Price

Product Details

Product Description
Highlight:

JM26 Mullite Bricks

,

Mullite Bricks JM28

,

Light Weight Mullite Insulating Fire Brick

Application:
Industrial Furnace
Color:
White
Compressive Strength:
2.0-3.0Mpa
Density:
0.9-1.2g/cm3
Fireproof Performance:
Excellent
Flexural Strength:
0.2-0.3Mpa
Heat Preservation:
Excellent
Material:
Ceramic
Moisture Absorption:
≤1.0%
Shape:
Brick
Size:
Customized
Thermal Conductivity:
0.05-0.2W/m.K
Thermal Shock Resistance:
Good
Thickness:
30-200mm
Application:
Industrial Furnace
Color:
White
Compressive Strength:
2.0-3.0Mpa
Density:
0.9-1.2g/cm3
Fireproof Performance:
Excellent
Flexural Strength:
0.2-0.3Mpa
Heat Preservation:
Excellent
Material:
Ceramic
Moisture Absorption:
≤1.0%
Shape:
Brick
Size:
Customized
Thermal Conductivity:
0.05-0.2W/m.K
Thermal Shock Resistance:
Good
Thickness:
30-200mm
JM23 JM26 Mullite Bricks JM28 JM30 JM32 Light Weight Mullite Insulating Fire Brick

Rongsheng JM23 JM26 JM28 JM30 JM32 Light Weight Mullite Insulation Firebrick

Description of High Performance Mullite Insulation Brick

Mullite Insulation Brick is a kind of quality refractory insulation materials for resisting high temperature with features of light weight, low thermal conductivity, thermal insulation and high compression strength in the high temperature furnaces or kilns. Mullite Insulation Bricks are mainly used for the top of hot blast stove, stack and bottom of blast furnace, regenerative chamber of glass melting furnace, lining of ceramic high temperature furnace and so on.

Technical Parameter of Mullite Insulation Brick:

Item Index
JM23 JM25 JM26 JM27
Al2O3 % ≥40 ≥50 ≥55 ≥60
Fe2O3 % ≤1.0 ≤1.0 ≤0.9 ≤0.8
Apparent porosity % ≤0.55 ≤0.80 ≤0.85 ≤0.9
Cold Crush Strength MPa ≥1.0 ≥1.5 ≥2.0 ≥2.5
Permanent Linear Change Rate % 1230℃×12h 1350℃×12h 1400℃×12h 1450℃×12h
-1.5~0.5

Thermal Conductivity



W/(m·K)

 200±25℃ ≤0.18 ≤0.26 ≤0.28 ≤0.32
350±25℃ ≤0.20 ≤0.28 ≤0.30 ≤0.32
600±25℃ ≤0.22 ≤0.30 ≤0.33 ≤0.36
0.05MPa Refractoriness Under LoadT0.5 ℃ ≥1080 ≥1200 ≥1250 ≥1300



Item Index
JM28 JM30 JM32
Al2O3 % ≥65 ≥70 ≥77
Fe2O3 % ≤0.7 ≤0.6 ≤0.5
Apparent porosity % ≤0.95 ≤1.05 ≤1.35
Cold Crush Strength MPa ≥2.5 ≥3.0 ≥3.5
Permanent Linear Change Rate % 1510℃×12h 1620℃×12h 1730℃×12h
-1.5~0.5
Thermal Conductivity W/(m·K) 200±25℃ ≤0.35 ≤0.42 ≤0.56
350±25℃ ≤0.37 ≤0.44 ≤0.60
600±25℃ ≤0.39 ≤0.46 ≤0.64
0.05MPa Refractoriness Under Load T0.5 ℃ ≥1360 ≥1470 ≥1570
