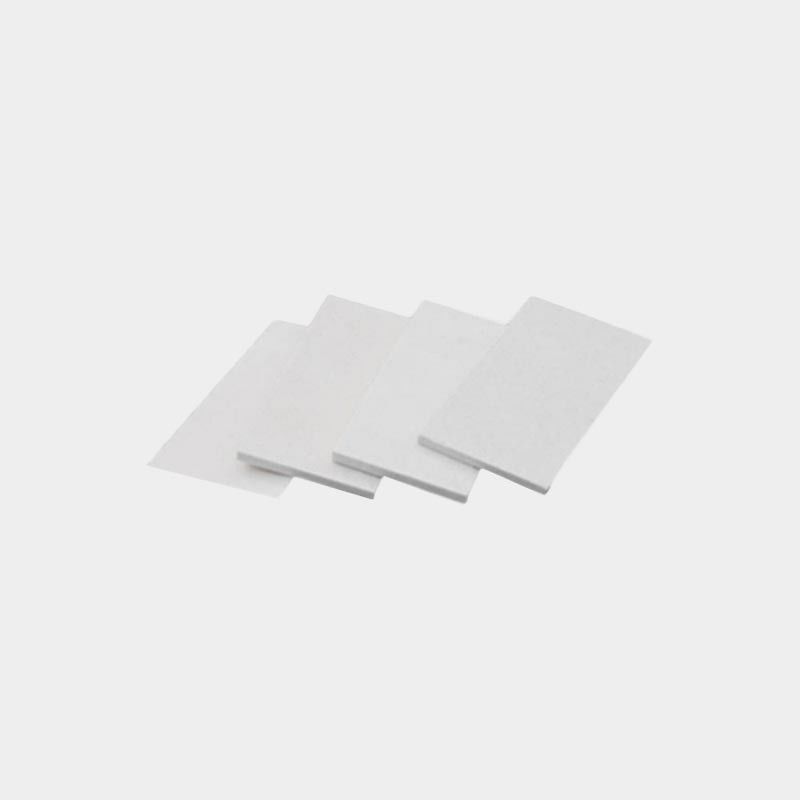

High Temperature Ceramic Insulation Board Silicate Aluminum Refractory Insulation Board

Product Details

Place of Origin: Zhengzhou, Henan, China

Brand Name: Rongsheng Xinwei

Certification: ISO Certification

Model Number: Mechanism board, Fire baffle

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 50 Pieces

Price: 10-15USD

Packaging Details: 1.Standard export packaging; 2.According to customer's requirements;

Delivery Time: 10-20 Days

Payment Terms: TT; L/C

Supply Ability: 80 Metric Ton/Metric Tons per Day Ceramic Fiber Board

Get Best Price
Highlight:

High Temperature Ceramic Insulation Board

,

Ceramic Insulation Board Silicate Aluminum

,

Silicate Aluminum Refractory Insulation Board

Acid Resistance:
Excellent
Alkali Resistance:
Excellent
Chemical Composition:
Al2O3, SiO2, MgO, CaO, Fe2O3, Etc.
Color:
White
Compressive Strength:
≥0.8Mpa
Density:
128-160kg/m³
Material:
Ceramic Fiber
Melting Point:
1430℃
Moisture Content:
≤1.5%
Tensile Strength:
≥0.2Mpa
Thermal Conductivity:
0.09-0.17W/m.K
Thermal Expansion:
0.7-1.2×10-6/K
Working Temperature:
1000-1430℃
Acid Resistance:
Excellent
Alkali Resistance:
Excellent
Chemical Composition:
Al2O3, SiO2, MgO, CaO, Fe2O3, Etc.
Color:
White
Compressive Strength:
≥0.8Mpa
Density:
128-160kg/m³
Material:
Ceramic Fiber
Melting Point:
1430℃
Moisture Content:
≤1.5%
Tensile Strength:
≥0.2Mpa
Thermal Conductivity:
0.09-0.17W/m.K
Thermal Expansion:
0.7-1.2×10-6/K
Working Temperature:
1000-1430℃
High Temperature Ceramic Insulation Board Silicate Aluminum Refractory Insulation Board

Description of Hot Selling High Temperature Ceramic Fiber Board Thermal Insulation Silicate Aluminum Firber Board



Rongsheng ceramic fiber boards are high performance insulation products manufactured from ceramic fiber (or with alumina fiber) and binders, with unique shot removing and vacuum forming process, provide excellent high temperature stability, extra low thermal conductivity, high compressive strength. In addition to the fine performance of corresponding bulk cellucotton, the texture of the board is hard, with the excellent toughness and strength, as well as excellent ability to resist wind erosion. Not expansive when heating, light weight, convenient for construction, can be arbitrary shear and bending, they are perfect materials for furnace, piping and other insulated equipments.



Product Advantages:



Low heat storage and low thermal conductivity;

High compression strength;

Non–fragile materials and good toughness;

Accurate dimension and good paleness;

structure homogeneity and easy machining;

Easy to install

Continual production, even fiber with stable property;

Excellent heat stability and thermal shock resistance



Application:



Cement building industry, kiln back lining-thermal insulation;

Ceramic industry-lining of various kilns for thermal insulation;

Petrochemical and metallurgy industries- back linings, wall linings, and ling thermal insulation;

Glass kiln lining and back lining thermal insulation;

Heat treatment furnace kiln back lining thermal insulation;

Aluminum factories-reduction cell firebricks back linings;

High temperature reaction, heating device-wall lining and back linings





Parameter of Hot Selling High Temperature Ceramic Fiber Board Thermal Insulation Silicate Aluminum Firber Board



Item Index
Die plate Mechanism board Fire baffle
Classification temperature 1260 1260 1400 1260 1400
Brand XB126M XB126A XB126B XB140A XB140B XB126D XB140D
Permanent Linear Change Rate %
℃×24h
≤-4
1000
≤-3
1000
≤-3
1100
≤-3
1200
≤-3
1350
≤-3
1100
≤-3
1200
Thermal Conductivity W/(m·K) 500℃ ≤0.135
Moisture content % ≤1.5
Organic content % ≤5
Bulk density kg/m3 400 300 320
Size mm Die plate 900×600×25/30;Other 900×600×25/50
Characteristic XB126M has low heat capacity and low thermal conductivity; XB126A is non-brittle and has good toughness; XB126B is resistant to wind erosion and has a long service life; XB140A has good thermal stability; XB140B is rigid and self-supporting;
