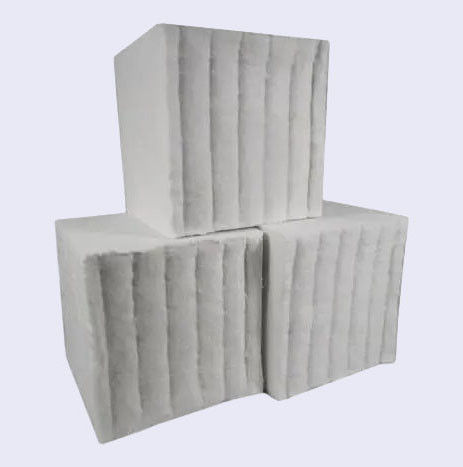

Industrial Ceramic Fiber Module Insulation For Heat Treatment Furnaces
Industrial Ceramic Fiber Module Insulation For Heat Treatment Furnaces
Industrial Ceramic Fiber Module Insulation For Heat Treatment Furnaces
Industrial Ceramic Fiber Module Insulation For Heat Treatment Furnaces
Industrial Ceramic Fiber Module Insulation For Heat Treatment Furnaces
Industrial Ceramic Fiber Module Insulation For Heat Treatment Furnaces

Industrial Ceramic Fiber Module Insulation For Heat Treatment Furnaces

Product Details

Place of Origin: Zhengzhou, China

Brand Name: Rongsheng Xinwei

Certification: ISO Certification

Model Number: SYN-1260Z, SYN-1400Z, SYN-1600Z

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 50 Roll

Price: 10-15 USD

Packaging Details: packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages

Delivery Time: 10-20 Days

Payment Terms: TT; L/C

Supply Ability: 25000 Rolls/Day

Get Best Price

Product Details

Product Description
Highlight:

Industrial Furnace Ceramic Fiber Module

,

Heat Treatment Furnaces Ceramic Fiber Module

Advantage:
Fire-resistant And Thermal Insulation
Chemical Composition:
Al2O3-SiO2
Color:
White
Compressive Strength:
0.2-0.4MPa
Corrosion Resistance:
Excellent
Durability:
High Durability
Fire Resistance:
Excellent
Insulation:
Excellent Insulation
Lightweight:
Lightweight
Moisture Content:
≤1%
Quality:
ISO9001-2000, ISO14001-1996
Surface:
Smooth Surface
Temperature:
1200°C
Temperature Rating:
2300°F
Usage:
Filling Materials
Advantage:
Fire-resistant And Thermal Insulation
Chemical Composition:
Al2O3-SiO2
Color:
White
Compressive Strength:
0.2-0.4MPa
Corrosion Resistance:
Excellent
Durability:
High Durability
Fire Resistance:
Excellent
Insulation:
Excellent Insulation
Lightweight:
Lightweight
Moisture Content:
≤1%
Quality:
ISO9001-2000, ISO14001-1996
Surface:
Smooth Surface
Temperature:
1200°C
Temperature Rating:
2300°F
Usage:
Filling Materials
Industrial Ceramic Fiber Module Insulation For Heat Treatment Furnaces

Hot Sale Industrial Furnace Ceramic Fiber Module Insulation For Heat Treatment Furnaces With Good Price

Rongsheng Ceramic Fiber Module is made of high quality ceramic fiber blanket by folding and cutting. Compared with the same or similar blanket of other company, our product is more flat on the surface, more even and tidy of the embroidery. In the production process, we apply dedicated machines according to different fiber component structure and size. In the process, a certain proportion of compression is maintained in order to ensure that modules expand to the different directions after completion of ceramic fiber folded module wall lining, to create mutual extrusion amongst modules and form a seamless whole unit. Ceramic fiber folded modules is directly fixed in industrial furnaces shell plate by various anchorage. Ceramic fiber will perform excellent refractoriness and improve the integrated thermal insulating performance of the furnace.

Industrial Ceramic Fiber Module Insulation For Heat Treatment Furnaces 0

Industrial Furnace Ceramic Fiber Module Wholesale

(1) Excellent refractoriness
(2) Excellent chemical stability and thermal stability
(3) Low thermal conductivity, low thermal capacity
(4) Resist to external mechanical forces
(5) Able to withstand any thermal shock
(6) Generate no gaps between modules

Application of Ceramic Fiber Module Insulation For Heat Treatment Furnaces
1. Insulation for high-temperature furnaces.
2. Surface insulation of industrial kilns.
3. Fire-barrier material for the multi-temperature-zones furnace.
4. Backing insulation of petroleum, chemical, and metallurgical furnace.
5. High-temperature sintering sagger.
6. High temperature sealing for machine and precision mold.



Product Specification of Hot Sale Industrial Furnace Ceramic Fiber Module



Type
SYN-1260Z
SYN-1400Z
SYN-1600Z
Classification Temperature(℃)
1260
1400
1600
Working Temperature(℃)
1000
1200
1500
Color
white
white
white
Density(kg/m³)
96-230
96-230
96-250
Shrinkage(%)
1100℃*24h
(2-3)
1200℃*24h
(1.5-2.5)
1500℃*24h
(0.5-1)
Thermal conductive(w/mk)
600℃
0.12
0.13
0.08
800℃
0.16
0.2
0.13
1000℃
0.22
0.22
0.17
1200℃
-
0.25
0.2

Standard Size:Module 300*300*150-300mm;
Other shapes and sizes can be made according to your requirements

Manufacturing Process of Ceramic Fiber Module
Step 1: Raw Material Preparation: Raw materials include ceramic fiber blankets or needle-punched blankets, etc.

Step 2: Design and Cutting: design and cut the ceramic fiber blanket according to specific application requirements.

Step 3: Processing and Forming: after special processing equipment, forming under certain temperature and pressure conditions.

Step 4: Drying and Curing: The module needs to be dried at an appropriate temperature to remove moisture and volatile substances and promote the curing and stability of the material.

Step 5: Inspection and Quality Control: After the production is completed, inspection and quality control are required to ensure that it meets the specified standards.

Product Packing of Ceramic Fiber Module

Industrial Ceramic Fiber Module Insulation For Heat Treatment Furnaces 1

Here is The Real Case We Have Done
Industrial Ceramic Fiber Module Insulation For Heat Treatment Furnaces 2
